Man Roland 700 Series
(All sizes in mm)
| Inkers |
Product Code |
Set Qty |
Core Dia |
Roller Dia |
Rubber Length |
Total Length |
| 9A 4616-13 Ink Form #454 |
MR701 |
1 |
57.0 |
78.0 |
1050.0 |
1163.0 |
| 9A4615-13 Ink Form #453 |
MR702 |
1 |
50.0 |
69.0 |
1050.0 |
1163.0 |
| 9A 4618-13 Ink Form #452 |
MR703 |
1 |
50.0 |
73.0 |
1050.0 |
1163.0 |
| 9A 4617-13 Ink Form #451 |
MR704 |
1 |
50.0 |
71.0 |
1050.0 |
1163.0 |
| 9C 3451-13 Ink Transfer #9 |
MR705 |
2 |
55.0 |
72.0 |
1040.0 |
1132.0 |
| 9C 3452-13 Ink Transfer #93 |
MR706 |
1 |
55.0 |
75.0 |
1040.0 |
1132.0 |
| 9C 3453-13 Ink Transfer #92 |
MR707 |
1 |
70.0 |
90.0 |
1040.0 |
1274.0 |
| 9E 0879-13 Ink Ductor #71 |
MR708 |
1 |
50.0 |
71.0 |
1022.0 |
1080.9 |
| Dampers |
|
|
|
|
|
|
| 9A 4532-13 Water Form #402 |
MR709 |
1 |
102.0 |
120.5 |
1050.0 |
1145.7 |
| 9C 3555-13J Water Metering |
MR710 |
1 |
65.0 |
85.0 |
1065.0 |
1186.8 |
|
 |

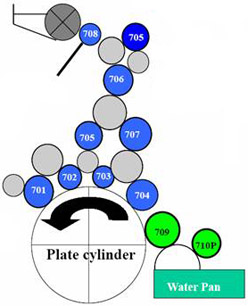

Roller
Configuration Diagram |
 |
 |
|
|
 |
|
|
|
|
